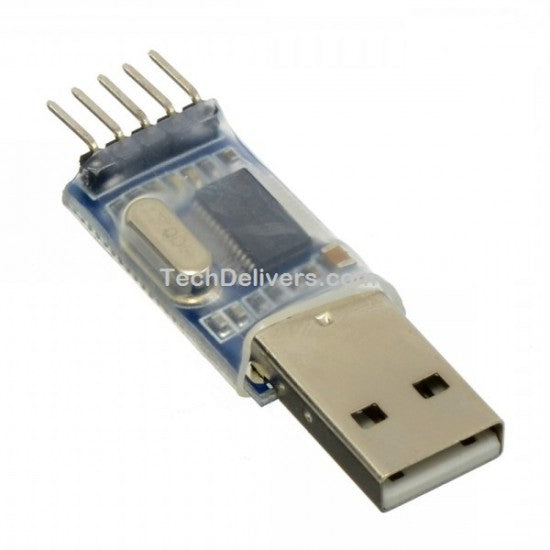

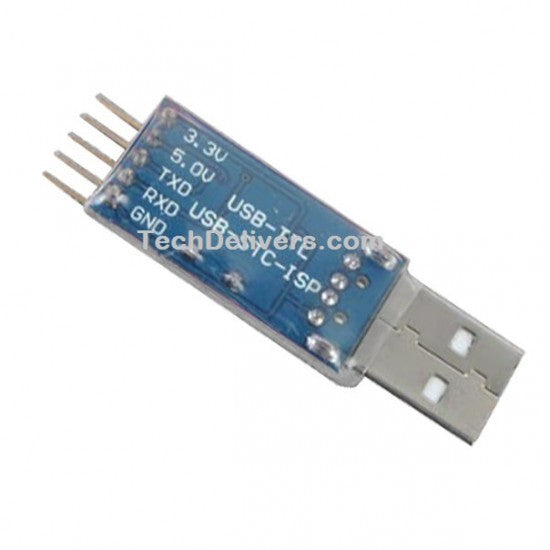

This USB to RS232 module based TTL provides the best and convenient way to connect your RS232 TTL Devices or demo board to your PC via the USB port.
Features:
- Adopt imported controller PL2303HX,which can stabilize the flash with high speed
- 500mA self recovery fuse for protection
- Two data transmission indicator can monitor data transfer status in real time
- Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that need power
- The entire board is coated by high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside, so that the board won't burnt down by material short cut
- Electrostatic package, insures the board will not be damaged before use
OS Support:
Supports the following Windows OSes:
- Windows 98SE
- Windows ME
- Windows 2000 SP4
- Windows XP SP2 and above (32 & 64 bit)
- Windows Server 2003 (32 & 64 bit)
- Windows Server 2008 / 2008 R2 (32 & 64 bit)
- Windows Vista (32 & 64 bit)
- Windows 7 (32 & 64 bit)
NOTE: For Windows 7, please use RC build 7100 or above.
