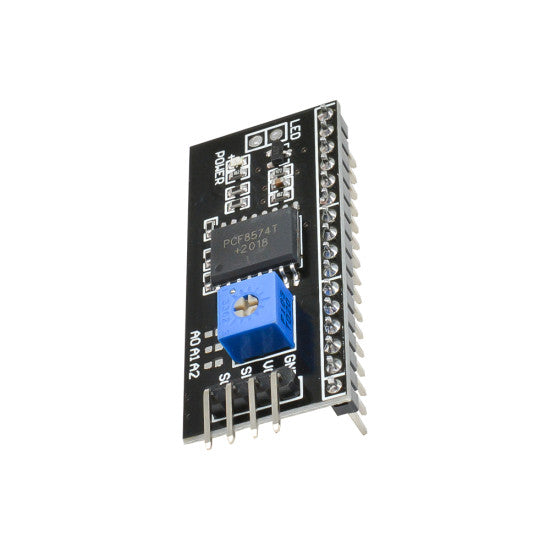

I2C Serial Interface Adapter Module for LCD Display

IIC/I2C Interface Adapter Module is used for 16×2 LCD Display. It uses the PCF8574T IC chip which converts I2C serial data to parallel data for the LCD display. Also this interface module simplifies connecting an Arduino to a 16×2 Liquid Crystal display using only 4 wires.

Features:

• Serial I2C control of LCD display using PCF8574

• 5V power supply
• Backlight can be enabled or disabled via a jumper on the board
• Contrast control via a potentiometer


Package Includes:

• 1 x IIC/I2C Serial Interface Adapter Module

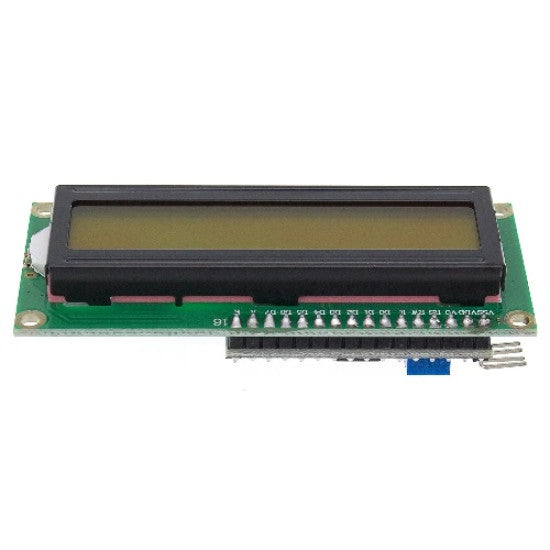

Note: Second image showing soldered LCD is for representation only and not included in package.
