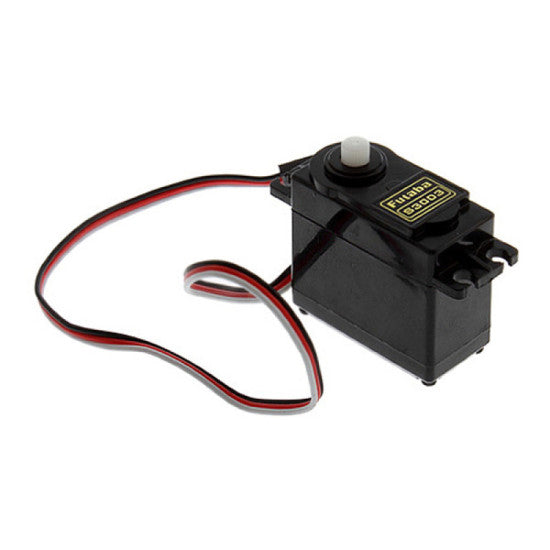

Servo Motor Futaba S3003

Futaba 37.2g servos are your easiest and most efficient way to upgrade your Futaba system. No other system provides you access to as many different sizes, shapes, and functions as Futaba. The performance and reliability of our servos have made them the favorite choice of professionals including top RC competition specialists and motion picture special effect artists. SMT Construction - Surface Mount Technology improves reliability in applications where there is vibration. Impact Resistant, Fuelproof Case - High impact plastic is designed to withstand minor crashes and the effects of model fuel. Through-the-hole Circuit Board Plating - Eliminates the need for wires or leads. Heavy Duty Output Shaft - Designed not to break, and offers versatility when installing the servo horn.

Features:

• Nylon gears
• Heavy Duty Output Shaft - Designed not to break, and offers versatility when installing the servo horn
• Through-the-hole Circuit Board Plating - Eliminates the need for wires or leads
• Impact Resistant, Fuelproof Case - High impact plastic is designed to withstand minor crashes and the effects of model fuel
• SMT Construction - Surface Mount Technology improves reliability in applications where there is vibration


Specifications:

• Speed: 0.23 sec/60° @ 4.8V; 0.19 sec/60° @ 6V
• Torque: 44 oz-in (3.2 kg-cm) @ 4.8V; 57 oz-in (4.1 kg-cm) @ 6V
• Dimensions: 1.6 x 0.8 x 1.4 in (1-9/16 x 13/16 x 1-7/16 in) (40 x 20 x 36 mm)
• Weight: 1.3 oz (37 g)

We are selling the wide range of Servo Motors with variable specs and quality material, Check them now

Servo Motors and Accessories

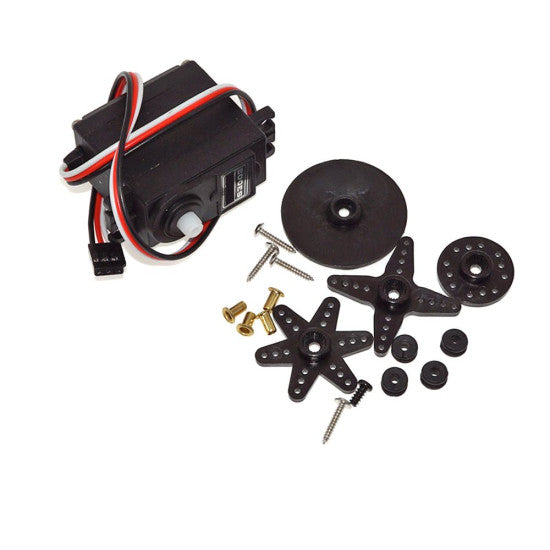

Package Includes :

• 1 x Futaba S3003 Servo Motor with Cable
• 1 x Set of Horns (As shown in picture)

• 1 x Set of Screws

* Image shown is a representation only.
