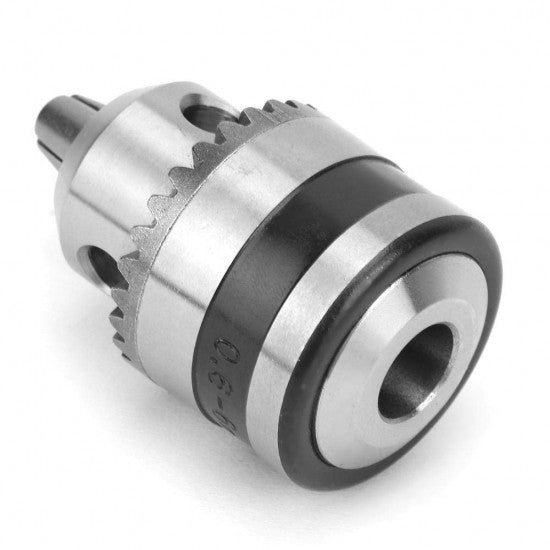

Drill Chuck Set for RS775 DC Motor Rotary Tool for Drill Bit 0.6mm to 6.0mm B10 Mount

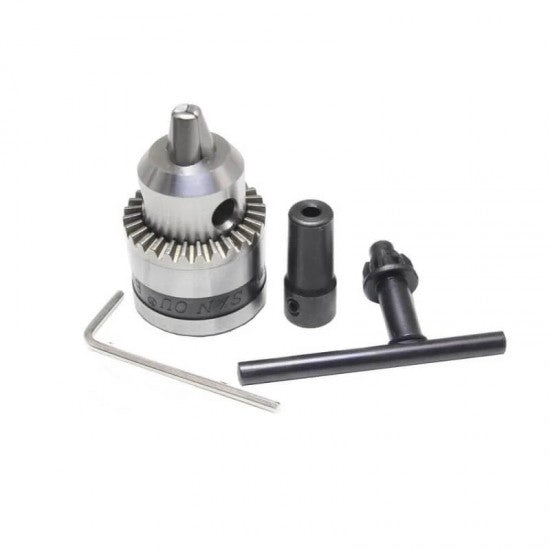

This Drill chuck is very handy when it comes to designing a small drill machine for DIY purposes. It comes with a coupler which makes this chuck suitable for the 775 DC motor. Along with the chuck, you will get 1 Allen key for tightening the Garv screw of the coupler and also 1 drill chuck key.

Drill Chucks 0.6-6mm Mount B10 Fit 5mm Motor Shaft. Electric Drill Chucks 0.6-6mm Mount B10 Fit For 5mm 775 Motor Shaft. In drills and mills, it holds the rotating tool whereas in lathes it holds the rotating work piece. On a lathe, the chuck is mounted on the spindle which rotates within the head-stock. For some purposes (such as drilling) an additional chuck may be mounted on the non-rotating tail-stock. D775 Drill Chuck Set is made of High-carbon steel production Stainless Steel. there are universal bit holes like 0.6 mm to 6 mm. Universal bit hole Mini Drill Chuck is Durable in Use and very suitable for twist Drills such as Abs Board, Aluminum Sheet, Paperboard Drill, PCB circuit boards etc.

•     Material: Bearing Steel
•     Product Name: Keyed B10 Mounted Drill Chuck
•     Connection Type: B10
•     Clamping Range: 0.6mm – 6mm
•     Main Color: Black, Silver Tone

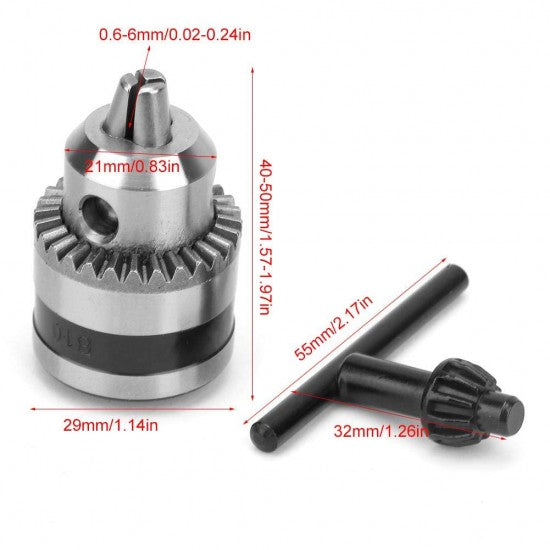

•     Dimension: ~40 x 30mm / 1.57-inch x 1.18-inch (H*D)
•     Weight: ~138g


• Excellent workmanship
• Suitable for most electric drills, and mini drills.
• The screw rod can be tightened and flexible for you.
• Hardened tool Bearing steel to insure accuracy and extended chuck life.

• 0.6-6.0mm drill capacity

• Motor shaft diameter hole - 5mm (RS-775 motor compatible)

• 1 x Drill Chuck
