Description
100% brand new and high quality. - High strength and wear resistance - Strong magnetic, large torque, motor using ball bearings,enhance the rigidity of the motor - There are also pressure sensitive resistance, anti interference - High speed of 5800RPM.

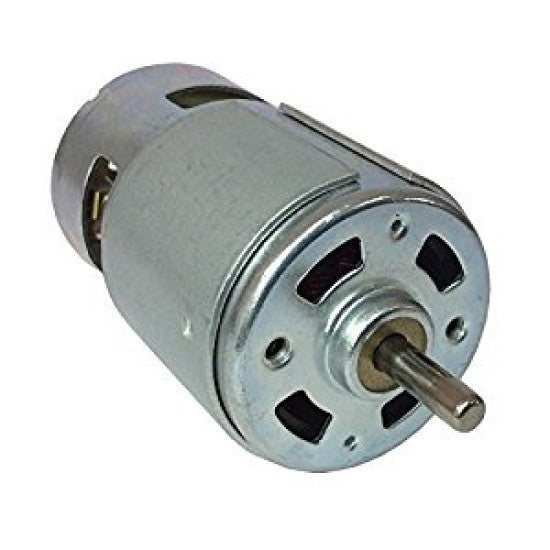

This DC Motor with its High 5800 revolution per minute feature is frequently used in various kind of High RPM applications like those in Remote controlled Model Aero Planes and for Suction. The 3mm diameter shaft of this motor can be coupled easily with commonly available Propellors.

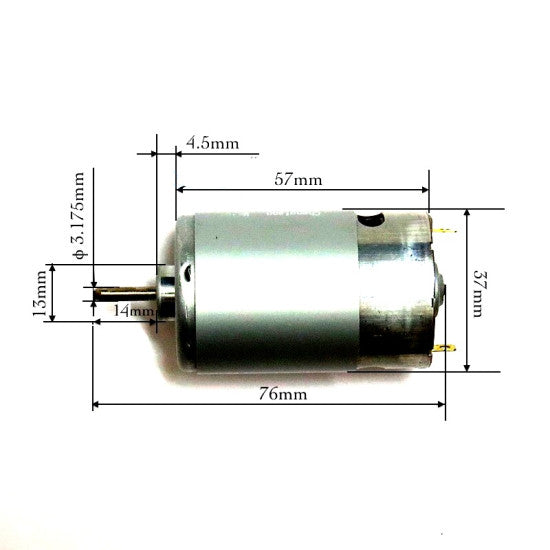

Specification:
- Operating Voltage: 12V DC to 24V DC
- Current: 0.08 A (blocking up to 3 A)
- Voltage: 24 V Current: 0.15 A (blocking 4.5A) Speed: 5800 RPM
- Output Shaft length: 14 mm
- Shaft diameter: 3 mm shaft
- Motor diameter: 35.8mm (with anti-magnetic ring 37mm)
- Motor length: 66.5mm
- Screw hole: M 3 Screw hole distance: 24.5 MM
- Superior running quietness and stability
- Motor weight: ~165grams (approx)
Typical Applications:
- PCB Drilling.
- Printer.
- Automotive Products.
- Rearview Mirror/Head Light Beam Level Adjuster.
*Image shown is a representation only.
