12-0-12 12V 500mA Center Tapped Step Down Transformer

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding.

The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding. The Transformer gives outputs of 12V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.

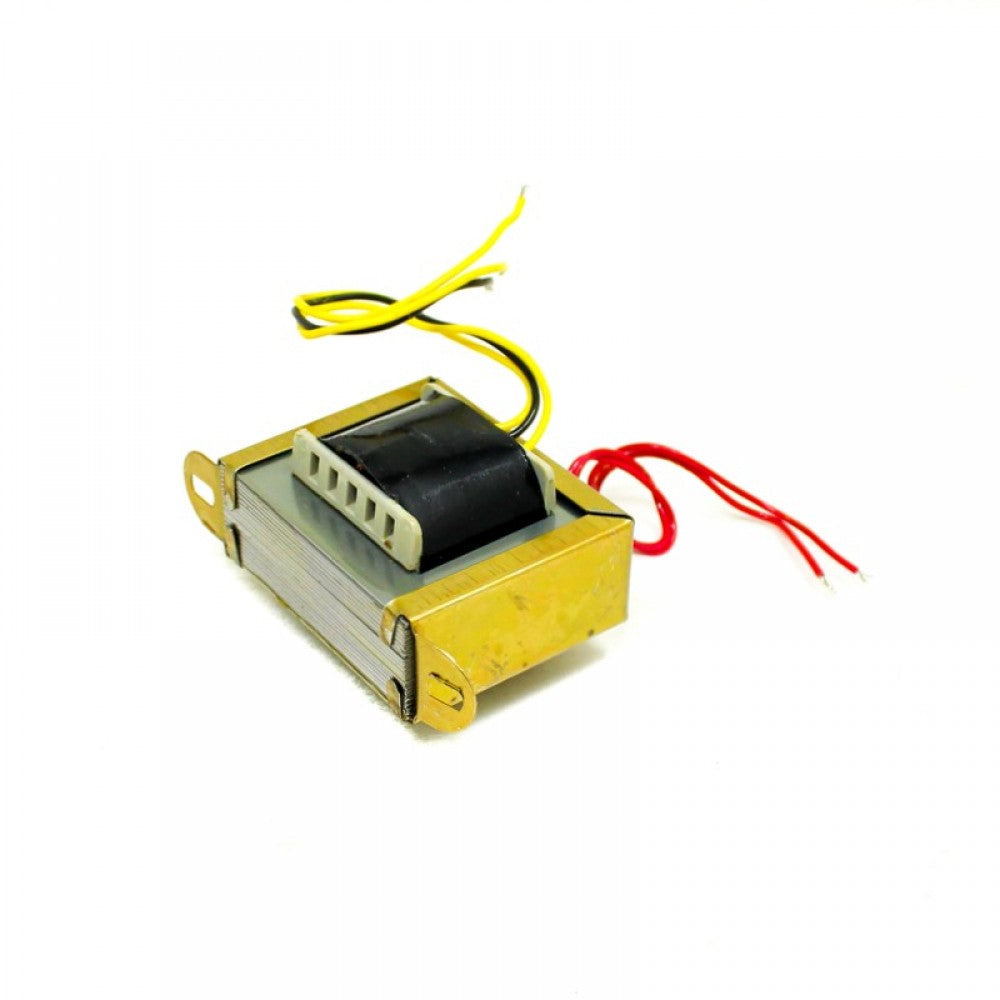

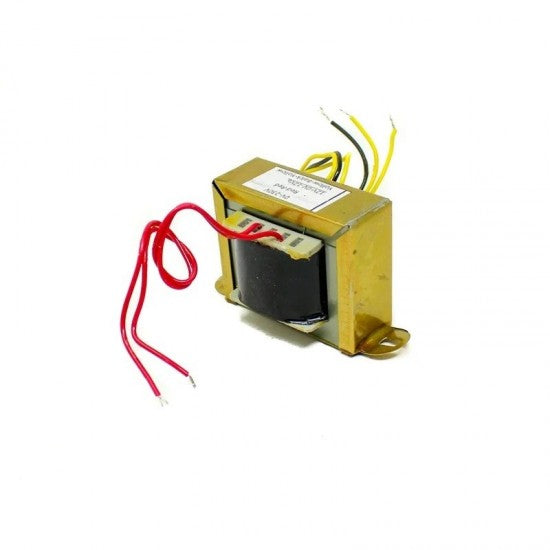

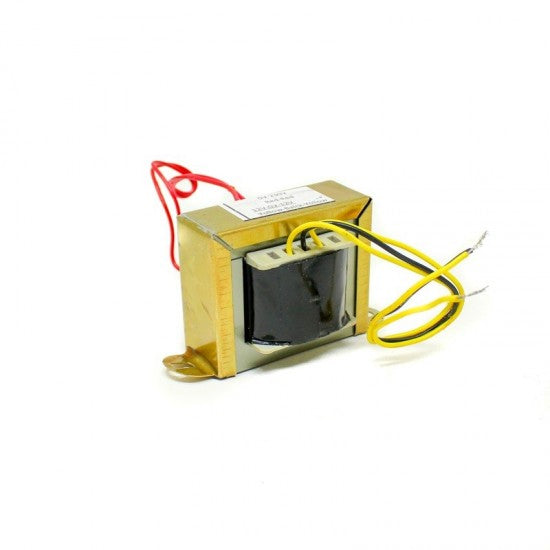

12-0-12 0.5Amp Step-Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and center tapped secondary winding. The transformer has flying color insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step-down transformer reducing AC – 230V to AC – 12V.

Specifications:

• Input voltage: 220V A.C.

• Output voltage: 12V - 0V - 12V

• Output current: 0.5 Amp

Features:

• 500mA Current Drain.
• Soft Iron Core.

Applications:

• DIY projects Requiring In-Application High current drain.
• On chassis AC/AC converter.
• Designing a battery Charger.

* Images shown is a representation only, color may vary depending on stock.
