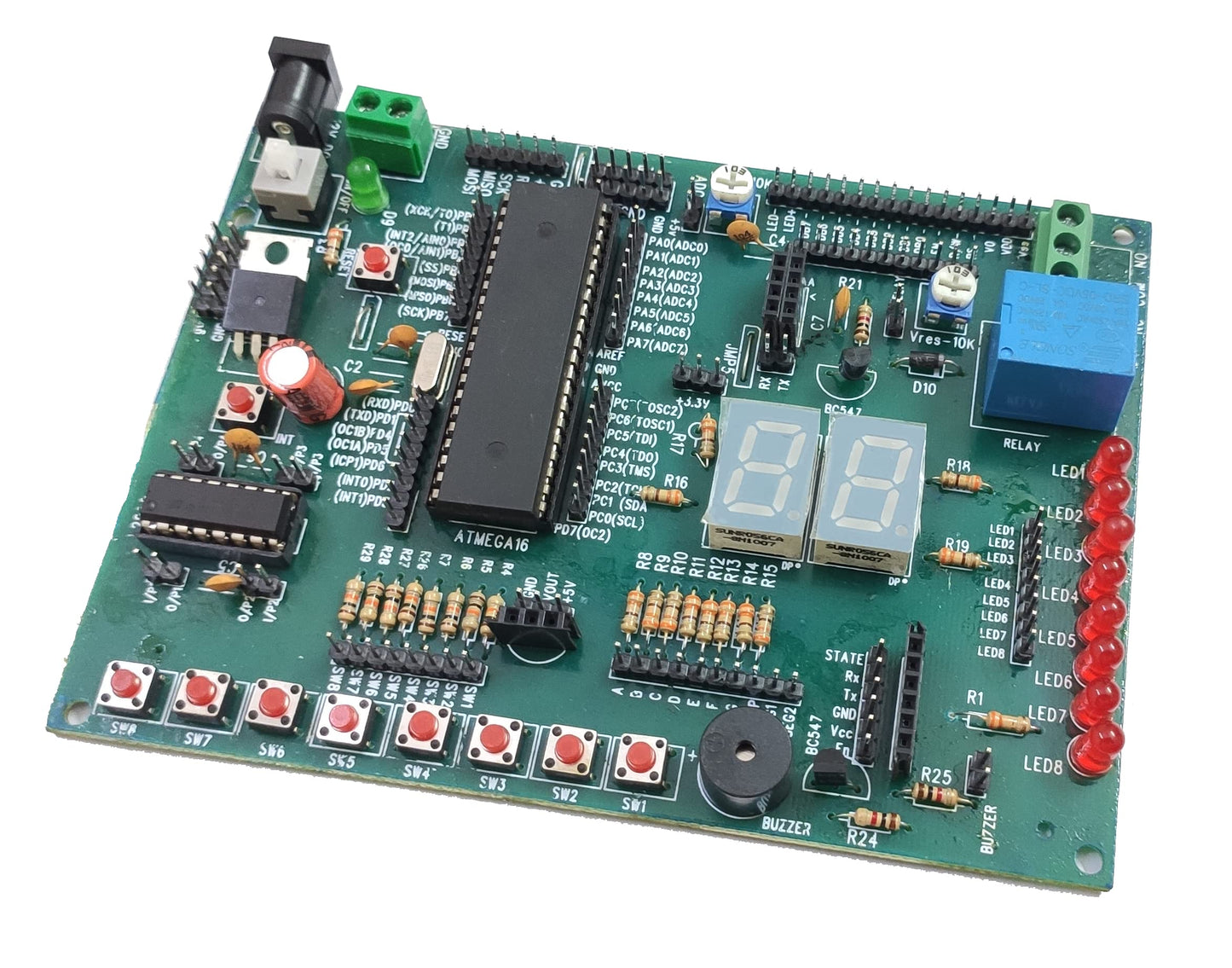

AVR Development Board a must have for AVR learners, experiment different circuits, develop and prototype with any of Atmega (Atmega16, Atmega32, ... etc.) 40 pin AVR microcontrollers.
On board serial RS232 port allows easy connection with PC or other embedded hardware.
On Board ICSP port allows other programmers to connect and program IC's like Atmega16, Atmega32, ... etc. without removing the controller from board.
Features:
- RS232 Tx, Rx interface with MAX232 IC on socket
- DIL40 ZIF Socket (Zero Insertion Force) microcontroller socket - To Reduce Microcontroller Damages
- ULN 2803 To Drive Stepper Motor & Relays
- Extension slot on every Microcontroller pin
Programmer Compatibility: USB ASP ISP Programmer for ATMEL AVR-ATMega-ATTiny-51 with FRC Cable
Other Features:
- On board Regulated Power Supply 5v, 12v supply
- Testing made easy with male berg connecters on each signal out
- 7 Segment Mulitplexed Display
- DC Power Supply Connector (12v AC or DC)
- Interface For 16x2 LCD Display
- On board Real Time Controller DS1307
Package Contains:
- AVR Development Board (with MAX232, RTC1307, 24C02, ULN2003)
- Female to Female connecting wires- 20 pieces
- Software CD (Data sheets, Example Porograms, AVR softwares, etc.)
