0.96 Inch I2C/IIC 4-Pin OLED Display Module Dual Color BLUE and YELLOW

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display

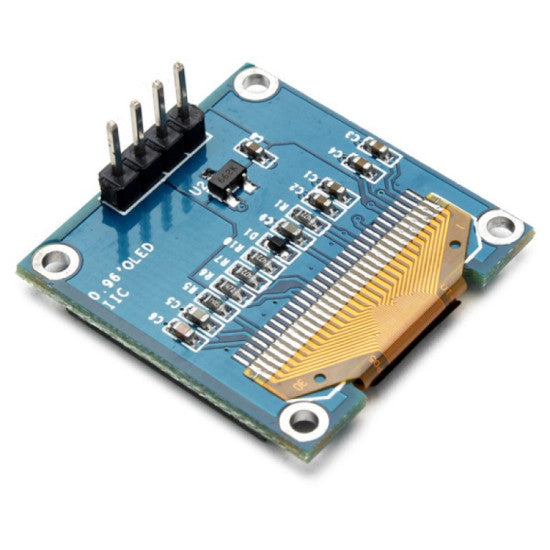

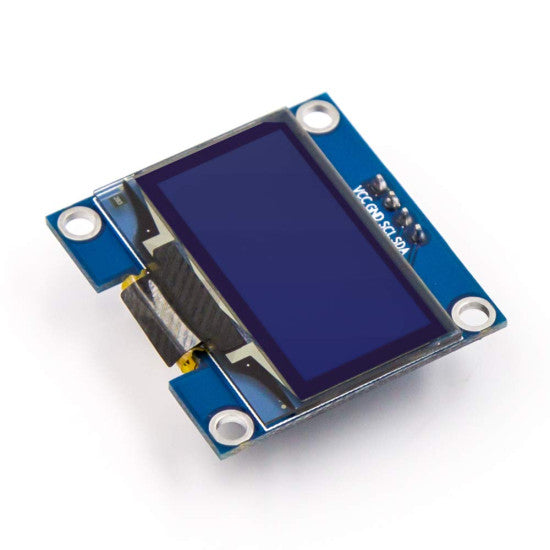

This 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C protocols. It is having a resolution of 128×64. The package includes display board, display, 4 pin male header pre-soldered to board.

OLED monochrome 128×64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Pinouts:

•     VCC: 3.3 volts – 5 Volts
•     GND: Ground
•     SCL: Serial Clock
•     SDA: Serial Data

Features:

•         Control Chip: SSD1306
•         Interface modes: I2C/IIC
•         Resolution radio:128 x 64
•         Display size: 0.96″
•         Embedded Driver/Controller
•         Super High Contrast (Adjustable)
•         Super High Brightness (Adjustable)

Package Contents:

•        1 x 0.96 Inch I2C IIC (4pin) OLED Display Module Dual Color BLUE and YELLOW
