PicKit 2 Programmer/Debugger with Board
£1,355.00
Zoom
Description

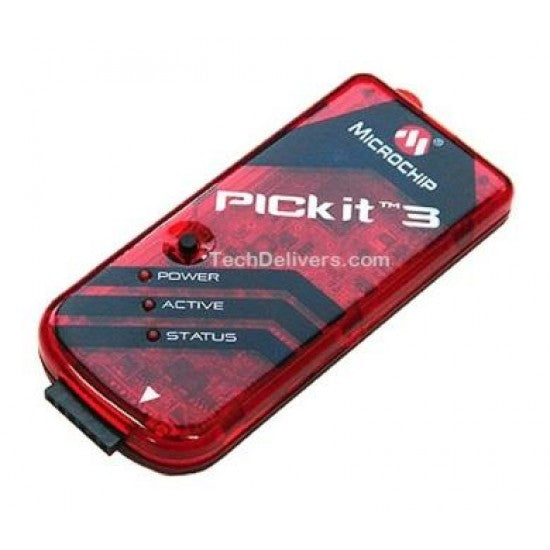

The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug ICSP connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).
This powerful device should be an integral part of the development engineer’s tool suite. This programmer can be used for hardware and software development of Microchip PIC microcontrollers (MCUs) and dsPIC Digital Signal Controllers (DSCs) that are based on In-Circuit Serial Programming (ICSP) and Enhanced In-Circuit Serial Programming 2-wire serial interfaces. In addition to debugger functions, the PICkit 3 programmer/debugger system also may be used as a development programmer.
Features:
- USB (Full speed 12 Mbits/s interface to host PC)
- Real-time execution
- MPLAB IDE compatible (v8.20 or greater)
- Built-in over-voltage/short circuit monitor
- Firmware upgradeable from PC/web download
- Totally enclosed
- Supports low voltage to 2.0 volts (2.0v to 6.0v range)
- Diagnostic LEDs (power, busy, error)
- Read/write program and data memory of microcontroller
- Erase of program memory space with verification
- Freeze-peripherals at breakpoint
- Program up to 512K byte flash with the Programmer-to-Go
- Built-in emulation circuitry
Basic Debugger System
The debugger system can be configured to use standard ICSP communication for both programming and debugging functions.
CAUTION: Do not change hardware connections while the PICkit3 or target is powered.
Debugger To Target Communication:
Connecting the PICkit3 to the target board through standard ICSP interface using 6-pin connector.
The programmer connector pin out is shown in the figure below:
The programmer connector pin out is shown in the figure below:
Supported Devices
- PIC10F
PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222
- PIC12F
PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615PIC12F629, PIC12F635, PIC12F675, PIC12F683
- PIC16F
PIC16F505,PIC16F506,PIC16F526,PIC16F54,PIC16F57,PIC16F59,PIC16F610,PIC16FHV610,PIC16F616, PIC16FHV616PIC16F627, PIC16F628, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F630, PIC16F631, PIC16F636,PIC16F639,PIC16F676,PIC16F677,PIC16F684,PIC16F685,PIC16F687,PIC16F688,PIC16F689, PIC16F690,PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F722, PIC16F723, PIC16F724, PIC16F726, PIC16F727, PIC16F716,PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F785, PIC16FHV785,PIC16F84A,PIC16F87,PIC16F88,PIC16F818,PIC16F819,PIC16F870,PIC16F871,PIC16F872, PIC16F873, PIC16F874,PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A, PIC16F882, PIC16F883, PIC16F884, PIC16F886, PIC16F887,PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16F1938, PIC16F1939, PIC16LF1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16LF1938, PIC16LF1939
- PIC18F
PIC18F242, PIC18F252, PIC18F442, PIC18F452,PIC18F248, PIC18F258, PIC18F448, PIC18F458 PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320, PIC18F1230, PIC18F1330,PIC18F2221, PIC18F2321, PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2431,PIC18F2423,PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480,PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523,PIC18F2525,PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585,PIC18F2610, PIC18F2620, PIC18F2680, PIC18F2682, PIC18F2685,PIC18F4220, PIC18F4221,PIC18F4320, PIC18F4321, PIC18F4331, PIC18F4410, PIC18F4420, PIC18F4423,PIC18F4431, PIC18F4450, PIC18F4455, PIC18F4458, PIC18F4480,PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523, PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580,PIC18F4585,PIC18F4610, PIC18F4620, PIC18F4680, PIC18F4682, PIC18F4685,PIC18F6310, PIC18F6390, PIC18F6393,PIC18F6410, PIC18F6490, PIC18F6493, PIC18F6520, PIC18F6525, PIC18F6527, PIC18F6585,PIC18F6620, PIC18F6621, PIC18F6622, PIC18F6627, PIC18F6628, PIC18F6680,PIC18F6720, PIC18F6722, PIC18F6723, PIC18F8310, PIC18F8390, PIC18F8393, PIC18F8410, PIC18F8490, PIC18F8493,PIC18F8520, PIC18F8525, PIC18F8527, PIC18F8585,PIC18F8621, PIC18F8620, PIC18F8622, PIC18F8627, PIC18F8628, PIC18F8680, PIC18F8720, PIC18F8722, PIC18F8723, PIC18F24J10, F25J10, F44J10, F45J10,PIC18LF24J10, LF25J10, LF44J10, LF45J10,PIC18F24J11, F25J11, F44J11, F45J11, PIC18LF24J11, LF25J11, LF44J11, LF45J11,PIC18F26J11, F46J11,PIC18LF26J11, LF46J11,PIC18F24J50, F25J50, F44J50, F45J50,PIC18LF24J50, LF25J50, LF44J50, LF45J50,PIC18F26J50, F46J50,PIC18LF26J50, LF46J50, PIC18F63J11, 63J90, 64J11, 64J90, PIC18F65J10, 65J11, 65J15PIC18F65J50, 65J90, PIC18F66J10, 66J11, 66J15, 66J16, PIC18F66J50, 66J55, 66J60, 66J65, PIC18F66J90, PIC18F67J10, 67J11, 67J50, 67J60, PIC18F67J90, PIC18F83J11, 83J90, 84J11, 84J90,PIC18F85J10, 85J11, 85J15, 85J50, PIC18F85J90, PIC18F86J10, 86J11, 86J15, 86J16, PIC18F86J50, 86J55, 86J60, 86J65, PIC18F86J90, PIC18F87J10, 87J11, 87J50, 87J60, PIC18F86J90, PIC18F96J60, 96J65, PIC18F97J60, PIC18F13K22, LF13K22, F14K22, LF14K22, PIC18F13K50, 14K50, PIC18F23K20, 24K20, 25K20, 26K20, PIC18F43K20, 44K20, 45K20, 46K20
- PIC24F
PIC24F04KA200, 04KA201,PIC24F08KA101, 08KA102,PIC24F16KA101, 16KA102,PIC24FJ16GA002, 16GA004,PIC24FJ32GA002, 32GA004,PIC24FJ32GA102, 32GA104,PIC24FJ32GB002, 32GB004,PIC24FJ48GA002, 48GA004,PIC24FJ64GA002, 64GA004,PIC24FJ64GA102, 64GA104,PIC24FJ64GB002, 64GB004,PIC24FJ64GA006, 64GA008, 64GA010,PIC24FJ64GB106, 64GB108, 64GB110,PIC24FJ96GA006, 96GA008, 96GA010,PIC24FJ128GA006, 128GA008, 128GA010,PIC24FJ128GA106, 128GA108, 128GA110,PIC24FJ128GB106, 128GB108, 128GB110,PIC24FJ192GA106, 192GA108, 192GA110,PIC24FJ192GB106, 192GB108, 192GB110,PIC24FJ256GA106, 256GA108, 256GA110,PIC24FJ256GB106, 256GB108, 256GB110 ,PIC24HJ12GP201, 12GP202,PIC24HJ16GP304,PIC24HJ32GP202, 32GP204,PIC24HJ32GP302, 32GP304, PIC24HJ64GP202, 64GP204,PIC24HJ64GP206, 64GP210, 64GP506,PIC24HJ64GP502, 64GP504, 64GP510, PIC24HJ128GP202, 128GP204,PIC24HJ128GP206, 128GP210, 128GP306,PIC24HJ128GP310,PIC24HJ128GP502, 128GP504,PIC24HJ128GP506, 128GP510,PIC24HJ256GP206, 256GP210, 256GP610
- dsPIC30
dsPIC30F1010,dsPIC30F2010, 2011, 2012,dsPIC30F2020, 2023,dsPIC30F 3010, 3011, 3012, dsPIC30F3013, 3014,dsPIC30F4011, 4012, 4013,dsPIC30F5011, 5013, 5015, 5016,dsPIC30F6010A, 6011A, 6012A
- dsPIC39
dsPIC39F6013A, 6014A, 6015
- dsPIC33
dsPIC33FJ12GP201, 12GP202,dsPIC33FJ16GP304,dsPIC33FJ32GP202, 32GP204,dsPIC33FJ32GP302, 32GP304, dsPIC33FJ64GP202, 64GP204,dsPIC33FJ64GP206, 64GP306, 64GP310,dsPIC33FJ64GP706, 64GP708, 64GP710, dsPIC33FJ64GP802, 64GP804,dsPIC33FJ128GP202, 128GP204,dsPIC33FJ128GP206, 128GP306, 128GP310, dsPIC33FJ128GP706, 128GP708, 128GP710,dsPIC33FJ128GP802, 128GP804,dsPIC33FJ256GP506, 256GP510, 256GP710, dsPIC33FJ06GS101, 06GS102, 06GS202,dsPIC33FJ16GS402, 16GS404,dsPIC33FJ16GS502, 16GS504, dsPIC33FJ12MC201, 12MC202,dsPIC33FJ16MC304,dsPIC33FJ32MC202, 32MC204,dsPIC33FJ32MC302, 32MC304, dsPIC33FJ64MC202, 64MC204,dsPIC33FJ64MC506, 64MC508, 64MC510,dsPIC33FJ64MC706, 64MC710,dsPIC33FJ64MC802, 64MC804,dsPIC33FJ128MC202, 128MC204, dsPIC33FJ128MC506, 128MC510,dsPIC33FJ128MC706, 128MC708, 128MC710, dsPIC33FJ128MC802, 128MC804,dsPIC33FJ256MC510, 256MC710
- dsPIC32
PIC32MX320F032H, 320F064H,PIC32MX320F128H, 320F128L,PIC32MX340F128H, 340F128L,PIC32MX340F256H, PIC32MX340F512H,PIC32MX360F256L, 360F512L,PIC32MX420F032H,PIC32MX440F128L, 440F128H, PIC32MX440F256H,PIC32MX440F512H,PIC32MX460F256L, 460F512L
- 11 Series Serial EEPROM Devices
11LC/AA010,11LC/AA020,11LC/AA040,11LC/AA080,11LC/AA160
- 24 Series Serial EEPROM Devices
24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025
- 25 Series Serial EEPROM Devices
25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024
- 93 Series Serial EEPROM Devices
25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C, 25LC/AA/C48A, 86B, 86C
- MCP250xx CAN Devices
MCP25020, 25025,MCP25050, 25055
Package:
- 1 x PICKIT2 compatible.
- 1 x USB to miniUSB shielded wire
- 1 x 6 core ICSP DuPont wire
Downloads:
*image shown is a representation only.
