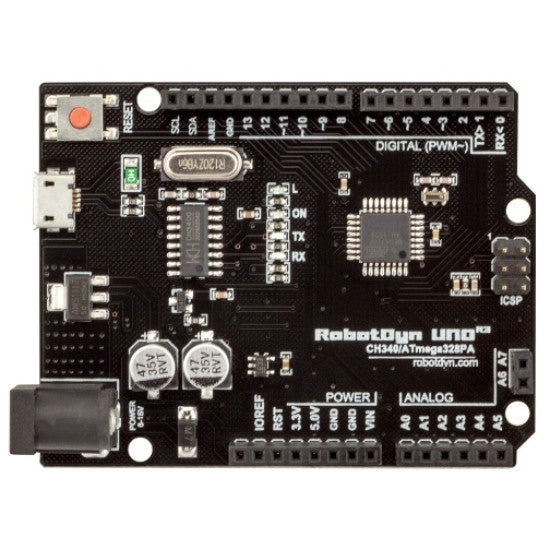

The Arduino Uno is a microcontroller board based on the ATmega328PU. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The advantages from our point of view are:
- MicroUSB female jack and more suitable even your smartphone has the same.
- Consistently designed with 5V. It is not to pay attention to 3V / 5V.
- The board is easy to program via the USB interface. No complicated libraries or drivers.
- Therefore, the bootloader comes out with 0.5 kB, unlike other bootloader requiring 2 kB. So there is more space for the application.
- The processor can be removed from the base and replaced. We can thus provide better support, by sending an individually programmed module.
- Low production costs and thus a favorable price for you.
Specifications:
- Flash memory: 32 kB (of which 0.5 kB used as the boot loader)
- Digital I / O Pins: 14 (of which 6 can be configured as PWM)
Package Contents:
- 1 x Arduino UNO R3 328 Board
- 1 x 40-pin male header strip
USB Driver: Search for "CH341SER" and install it according to Operating System you are using.
*image shown is real.
